Beginning in 2007, representatives from the Oil & Gas and Petrochemical industries participated in an OpenO&M End-User Advisory Group to provide the highest valued Use Cases with interoperability scenarios required for organizations to meet their business objectives. These have been continuously developed and refined through the OGI Pilot.

Current Use Cases

Pending Use Cases

These are use cases in which owner/operators have expressed interest, but detailed analysis work has not yet been completed.

Scenarios

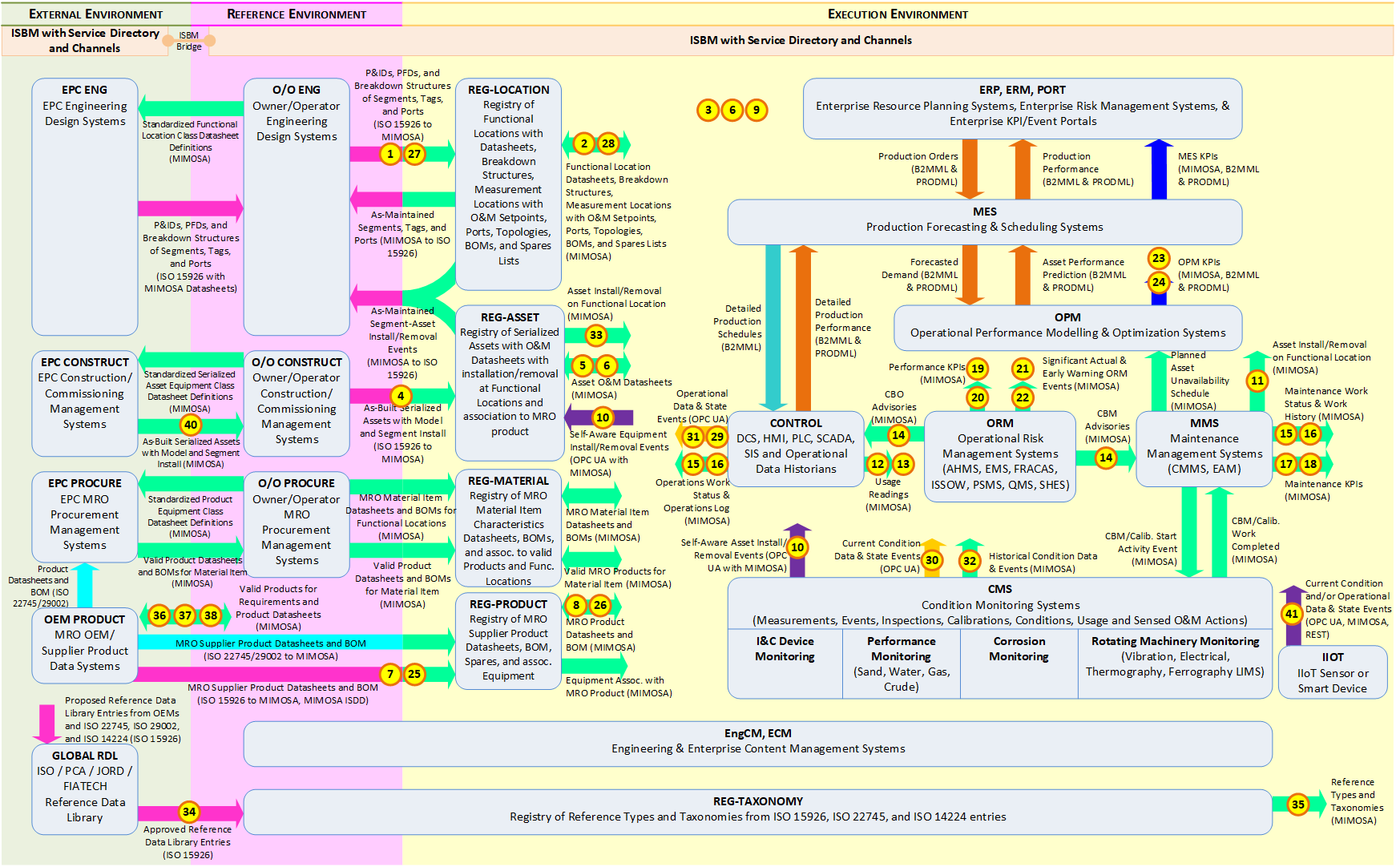

Each of the above Use Cases have a number of interoperability scenarios that indicate the source and target systems, information payload and format, triggers and transfer mechanism. The OIIE™ Systems Landscape Data Flow Diagram below provides a single visual rendering of the scenarios with the relevant system blocks that represent categories of data/information repositories, and arrows that represent the standardized information data flow scenarios between the system blocks.

No.MethodDataFrom System/sTo System/s
1PublishAs-Designed/As-Built Engineering Network/Segment/TagENGREG-LOCATION
2PublishAs-Designed/As-Built Engineering Network/Segment/TagREG-LOCATIONO&M
3PublishAs-Maintained Engineering Network/Segment/TagO&MO&M
4PublishAs-Built Engineering AssetCONSTRUCTREG-ASSET
5PublishAs-Built Engineering AssetREG-ASSETO&M
6PublishAs-Maintained Engineering AssetO&MO&M
7PullOEM ModelMATERIALS, PDMREG-MODEL
8PullOEM ModelREG-MODELO&M
9PublishOEM ModelO&MO&M
10PushIntelligent Device Removal/InstallationCONTROLMMS
11PublishAsset Removal/InstallationMMSO&M
12PullUsage ReadingsHISTMMS, ORM
13PublishUsage ReadingsHISTMMS, ORM
14PushCBO/CBM AdvisoriesORMMMS, CONTROL
15PullWork Status/Work HistoryMMS, CONTROLO&M
16PublishWork Status/Work HistoryMMS, CONTROLO&M
17PullMaintenance KPIsMMSERP, ERM, PORT, MES, OPM
18PublishMaintenance KPIsMMSERP, ERM, PORT, MES, OPM
19PullPerformance KPIsORMERP, ERM, PORT, OPM
20PublishPerformance KPIsORMERP, ERM, PORT, OPM
21PullSignificant ORM EventsORMERP, ERM, PORT, OPM
22PublishSignificant ORM EventsORMERP, ERM, PORT, OPM
23PullOPM KPIsOPMERP, ERM, PORT, MES
24PublishOPM KPIsOPMERP, ERM, PORT, MES
25PublishProduct/Part Engineering Change AdvisoriesOEM PDMREG-MODEL
26PublishProduct/Part Engineering Change AdvisoriesREG-MODELO&M
27PublishPlant/Process Change AdvisoriesENGREG-LOCATION
28PublishPlant/Process Change AdvisoriesREG-LOCATIONO&M
29PublishCurrent Operational Data and State EventsCONTROLO&M
30PublishCurrent Condition Data and State EventsCMSO&M
31PullHistorical Operational Data and State EventsCONTROLO&M
32PullHistorical Condition Data and State EventsCMSO&M
33PullAsset Removal/InstallationREG-ASSETO&M
34PullReference DataExternal RDLEnterprise RDL
35PullReference DataEnterprise RDLO&M

Note When mapping Publish, Push and Pull actions to ISBM services, Publish uses the Publish-Subscribe services, while Push and Pull actions use Request-Response services.

Note When mapping Publish, Push and Pull actions to OAGIS BOD Verbs, Publish may use the Sync verb, while Push and Pull actions may use Process-Acknowledge and Get-Show verbs respectively.
